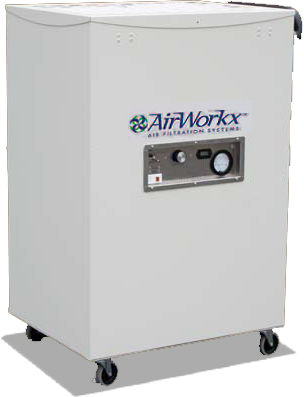

AWX2000PAC.pdfCleaner Air - HEPA Filtration Technology
AirWorkx™ air purification products are equipped with HEPA filters designed to meet strict regulations and our customer's demands for cleaner air and safer work environments. We utilize only the highest quality True HEPA filters (wood or metal frame) in our machines, which are available in many sizes and capacities. We take pride in a job well done and so you can count on our line of dependable, robust portable air filtration systems.
As adaptable as they are compact and rugged, our machines can be used right out of the box to help eliminate dust and debris in the air you breathe as well as to facilitate the removal of other harmful contaminants such as mold spores, asbestos and lead.
Medical Series: Environments and Applications
Our Medical Series portable air filtration systems each come standard with a aluminum framed, factory-tested True HEPA filter that is certified as 99.99% efficient (@0.3μ). The combination of a medical grade 99.99% HEPA filter and UV germicidal irradiation offers the highest level of protection for both health care professionals and patients.
Contractor and Specialty Series: Environments and Applications
Our Contractor and Specialty models can be used in mold, lead and asbestos abatement projects as well as in remediation of all sorts. Optional activated carbon filters for removal of chemical fumes and biological contaminants and dirt and debris bag filters are available. These machines are intended to provide a cleaner and healthier environment practically anywhere air quality and employee safety are of concern.
Air flow
200-1800 cfm (variable)
Airflows are based on blower manufacturer curves. Different HEPA filters may cause the flow to vary.
Weight (with filters)
135 lbs
Ship Weight
140 lbs
Dimensions
26" wide 20" deep 40" high
UV Germicidal Irradiation
UV-C germicidal light module with four (4) 12" straight UV-C lights with on/off switch.
Filtration
Primary/Secondary Filter - Pleated MERV-11 rated
HEPA Filter - Metal Frame 99.99% Efficiency .3 micron individually certified
*Also available with a 99.99% @ 0.1-0.2μ HEPA Filter*
Optional - OdorGuard 600 high capacity carbon fiber filter for odor control
Optional - OdorGuard 750 high capacity carbon/alumina fiber filter for odor control
Power Requirement
Standard - 115 VAC/ 50-60 Hz 12.0 amps
Optional - 230 VAC/50-60 Hz
Cabinet
Aircraft grade aluminum with Galvanized steel
reinforcements. Closed end rivet construction.
Seams are silicon sealed before riveting. Epoxy paint. Molded polyurethane handle. Four (4) 3" casters.
Controls
Recessed control panel with Variable Speed Control.
Differential pressure gauge (0-5” W.C.) indicates HEPA filter loading status.
Digital hour meter (LCD Display).
UVGI Light ON/OFF switch.
LED light for lamps/ballast status.
Outlet Ring Size
10
" diameter (requires optional connection adapter)
Accessories
| Product Name | Part No. | Description | Price |
| Pre-filters for 2000PAC | AWXOPF2416 | Primary Pleated Filter, 24"x16"x2", MERV 11 (QTY 4) | $65.00 |
| HEPA Filter for 2000PAC | AWXOAH2418G | HEPA Certified Filter, 99.99% @ 0.3 microns, Metal Frame, 24"x18"x12" | $435.00 |
| Intake Manifold, 10” dia. ring | AWXOAIM2000-10 | Intake Manifold, durable ABS plastic, Size: 26"x20" with 10" dia. ring for flex duct | $157.50 |
| Quick Clamp, 8"-10” | AWXQCW12 | Quick Clamp, 8" to 10” dia., stainless steel, worm drive, quick adjusting | $20.00 |
| Flexible Duct, 10”x25’ | AWXOAD10 | Flexible Duct, 10" dia. x 25 ft., clear, wire reinforced | $55.00 |
| OdorGuard 600 Carbon Filter | AWXOG2416D | OdorGuard 600 Carbon filter pad, size: 24”x18”x2” | $127.50 |
| UV-C Emitter Tube, 10½” J-type | AWXEUV105J | UV-C High Intensity Germicidal light, 10.5" J-type | $312.50 |
