AIR FILTRATION SYSTEMS
Mfg List Price:
- Overviewgeneral information
- Specificationsdetailed information
- Accessoriesfilters and more
- Documents manuals and spec sheets

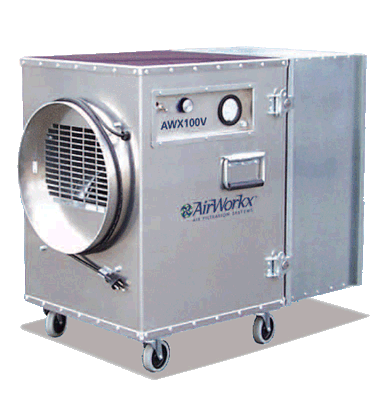

AWX100V.pdfCleaner Air - HEPA Filtration Technology
AirWorkx™ air purification products are equipped with HEPA filters designed to meet strict regulations and our customer's demands for cleaner air and safer work environments. We utilize only the highest quality True HEPA filters (wood or metal frame) in our machines, which are available in many sizes and capacities. We take pride in a job well done and so you can count on our line of dependable, robust portable air filtration systems.
As adaptable as they are compact and rugged, our machines can be used right out of the box to help eliminate dust and debris in the air you breathe as well as to facilitate the removal of other harmful contaminants such as mold spores, asbestos and lead.
Medical Series: Environments and Applications
Our Medical Series portable air filtration systems each come standard with a aluminum framed, factory-tested True HEPA filter that is certified as 99.99% efficient (@0.3μ). The combination of a medical grade 99.99% HEPA filter and UV germicidal irradiation offers the highest level of protection for both health care professionals and patients.
Contractor and Specialty Series: Environments and Applications
Our Contractor and Specialty models can be used in mold, lead and asbestos abatement projects as well as in remediation of all sorts. Optional activated carbon filters for removal of chemical fumes and biological contaminants and dirt and debris bag filters are available. These machines are intended to provide a cleaner and healthier environment practically anywhere air quality and employee safety are of concern.
Air flow
Variable: 200-1900 cfm
Airflows are based on blower manufacturer curves. Different HEPA filters may cause the flow to vary.
Weight (with filters)
95 lbs
Ship Weight
135 lbs
Dimensions
18
" wide 28" high 32" long
Filtration
Primary/Secondary Filter - Dual-ply Dustlok® polyester pad
HEPA Filter - Wood Frame 99.97% Efficiency .3 micron individually certified
Optional - CarbonVapor Trap, disposable V-Bank filter (27 lbs of carbon, use with optional bag filter housing, Part No.: AWXMPH100X)
Optional - CarbonVapor Trap, disposable V-Bank filter (36 lbs of carbon, stand alone)
Optional - OdorGuard 600 Activated Carbon Filter for odor control
Power Requirement
115 VAC/ 50-60 Hz 12.0 amps
Cabinet
Aircraft grade aluminum with closed-end rivet construction,
silicon-sealed before riveting.
Four (4) hospital grade non-marking 3" swivel casters.
Carrying handles with rubber grips.
Controls
Recessed control panel with Variable Speed
Control.
Differential pressure gauge (0-5” W.C.) indicates
HEPA filter loading status.
Outlet Ring Size
14" diameter
Accessories
| Product Name | Part No. | Description | Price |
| Pre-filters for 100V | AWXOFP2518 | Primary/Secondary Filter, two-stage poly, 25" x 20" x 2" (QTY 20) | $132.50 |
| HEPA Filter for 100V | AWXOFH12 | HEPA Certified Filter, 99.97% @ 0.3 microns, Metal Frame, 24"x18"x12" | $407.50 |
| Bag Filter 95% ASHRAE | AWXOBF9 | 95% ASHRAE efficiency dual stage bag filter. Size: 24x18x12, 9 pockets | $120.00 |
| Bag Filter Housing | AWXMPH100X | 24"x18"x14" Metal housing for ASHRAE bag filter and CarbonVapor Trap filter | $432.50 |
| Intake Manifold, 14” | AWXOFM14 | Intake Manifold, ABS plastic, Size: 18"x24" with 14" dia. ring for flex duct | $157.50 |
| Quick Clamp, 12”-14" | AWXQCW14 | Quick Clamp, 12 to 14” dia., stainless steel, worm drive, quick adjusting | $22.50 |
| Flexible Duct, 14”x25’ | AWXOFD14 | Flexible Duct, 14" dia. x 25 ft., clear, wire reinforced | $77.50 |
| OdorGuard 600 Carbon Filter | AWXOG2116 | OdorGuard 600 Carbon filter pad, 21”x16”x2” | $80.00 |
| Carbon Vapor Trap Filter | AWXOCVT18 | Disposable V-Bank filter with 27 lbs. of carbon (use with Bag Filter Housing) | $642.50 |
| Carbon Vapor Trap Filter | AWXOCVT2424 | Disposable V-Bank filter with 36 lbs. of carbon, size 24"x24"x12" (stand alone) | $650.00 |
| Intake Manifold for AWXOCVT2424 carbon filter | AWXOFM24 | Intake Manifold for AWXOCVT2424 carbon filter, ABS plastic, 24"x 24" with 14" dia. ring for flex duct connection | $197.50 |
