AWX2200UL.pdfCleaner Air - HEPA Filtration Technology

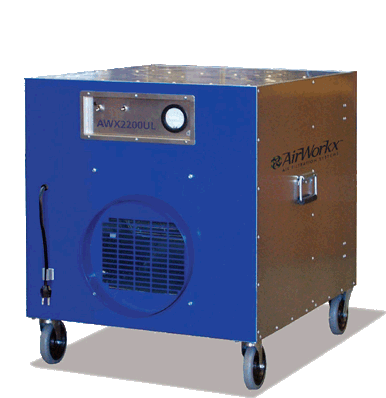

AirWorkx™ air purification products are equipped with HEPA filters designed to meet strict regulations and our customer's demands for cleaner air and safer work environments. We utilize only the highest quality True HEPA filters (wood or metal frame) in our machines, which are available in many sizes and capacities. We take pride in a job well done and so you can count on our line of dependable, robust portable air filtration systems.
As adaptable as they are compact and rugged, our machines can be used right out of the box to help eliminate dust and debris in the air you breathe as well as to facilitate the removal of other harmful contaminants such as mold spores, asbestos and lead.
Medical Series: Environments and Applications
Our Medical Series portable air filtration systems each come standard with a aluminum framed, factory-tested True HEPA filter that is certified as 99.99% efficient (@0.3μ). The combination of a medical grade 99.99% HEPA filter and UV germicidal irradiation offers the highest level of protection for both health care professionals and patients.
Contractor and Specialty Series: Environments and Applications
Our Contractor and Specialty models can be used in mold, lead and asbestos abatement projects as well as in remediation of all sorts. Optional activated carbon filters for removal of chemical fumes and biological contaminants and dirt and debris bag filters are available. These machines are intended to provide a cleaner and healthier environment practically anywhere air quality and employee safety are of concern.
Air flow
1000 and 2000 cfm
Airflows are based on blower manufacturer curves. Different HEPA filters may cause the flow to vary.
Weight (with filters)
125 lbs
Ship Weight
160 lbs
Dimensions
26" wide 31" high 34" long
Filtration
Primary/Secondary Filter - Dual-ply Dustlok® polyester pad
HEPA Filter - Wood Frame 99.97% Efficiency .3 micron individually certified
Optional - 95% ASHRAE bag filter (Filter housing required - sold separately)
Optional - OdorGuard600 Activated Carbon Filter for odor control
Power Requirement
115 VAC/ 50-60 Hz 13.8 amps
Cabinet
Aircraft grade aluminum and galvanized steel with epoxy paint, closed end rivet construction. All seams are silicone sealed before riveting. 4 hospital grade non-marking 5" casters for ease of movement.
Controls
Power Switch - ON/OFF
Speed Selector Switch - HIGH/LOW
Differential pressure gauge (0-5” W.C.) to indicate
HEPA filter loading.
Outlet Ring Size
12" diameter
Accessories
| Product Name | Part No. | Description | Price |
| Pre-filters for 2200UL | AWXOAP2424 | Primary/Secondary filter, two-stage poly, 24"x24"x2" (QTY. 20) | $132.50 |
| HEPA Filter for 2200UL | AWXOAH2424L | HEPA Certified Filter, 99.97% @ 0.3 microns, Wood Frame, 24"x24"x12" | $375.00 |
| Bag Filter 95% ASHRAE | AWXOBF10 | Bag Filter, 95% ASHRAE, 24"x24"x12", 8-pockets | $102.50 |
| Bag Filter Housing | AWXHBF2200 | Filter Housing for ASHRAE Bag Filter | $265.00 |
| Intake Manifold, 12” | AWXOAIM2200-12 | Manifold to allow ducting of intake air, 12" diameter ring | $197.50 |
| Quick Clamp, 12”-14" | AWXQCW14 | Quick Clamp, 12 to 14” dia., stainless steel, worm drive, quick adjusting | $22.50 |
| Flexible Duct, 12”x25’ | AWXOAD12 | Flexible Duct, 12 dia. x 25 ft., clear, wire reinforced | $72.50 |
| OdorGuard 600 Carbon Filter | AWXOG2424D | OdorGuard 600 Carbon filter pad, 24”x24”x2” | $137.50 |
| Carbon Vapor Trap Filter | AWXOCVT2424 | CarbonVapor Trap, disposable V-Bank filter with 36 lbs. of carbon | $650.00 |
